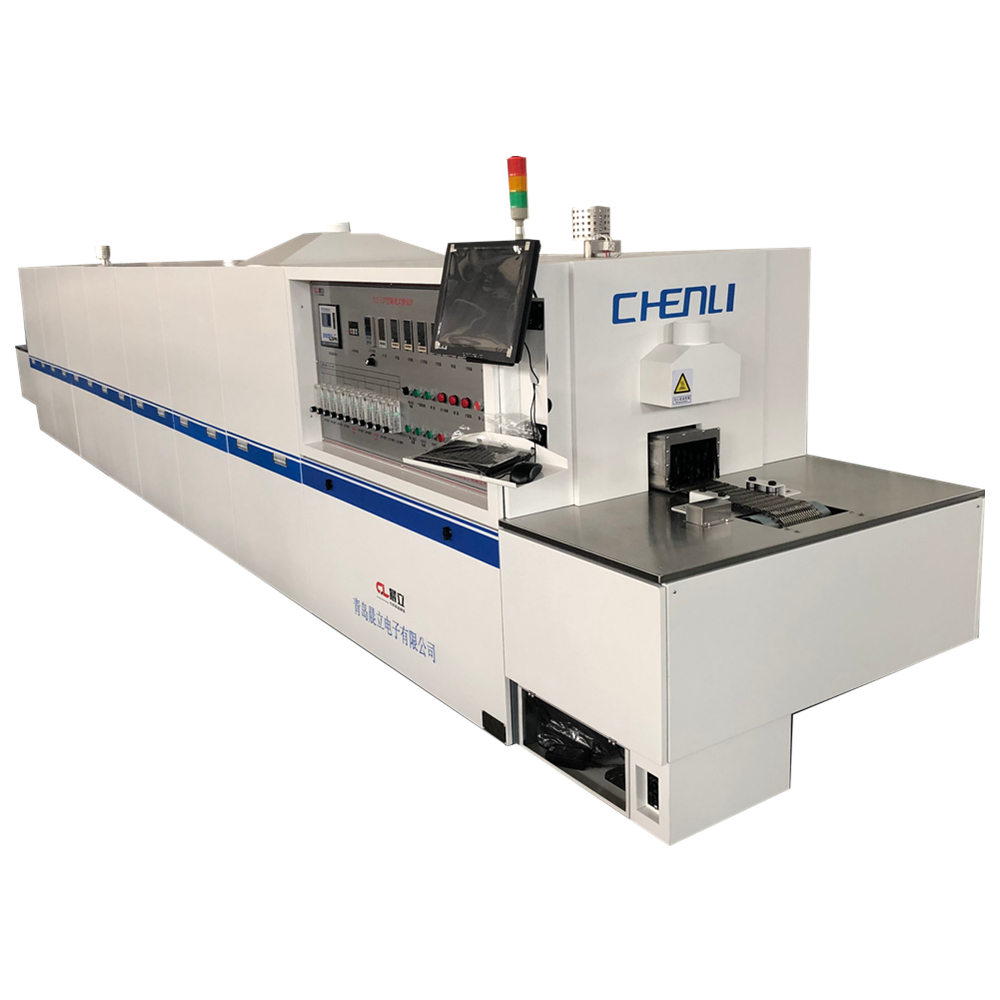

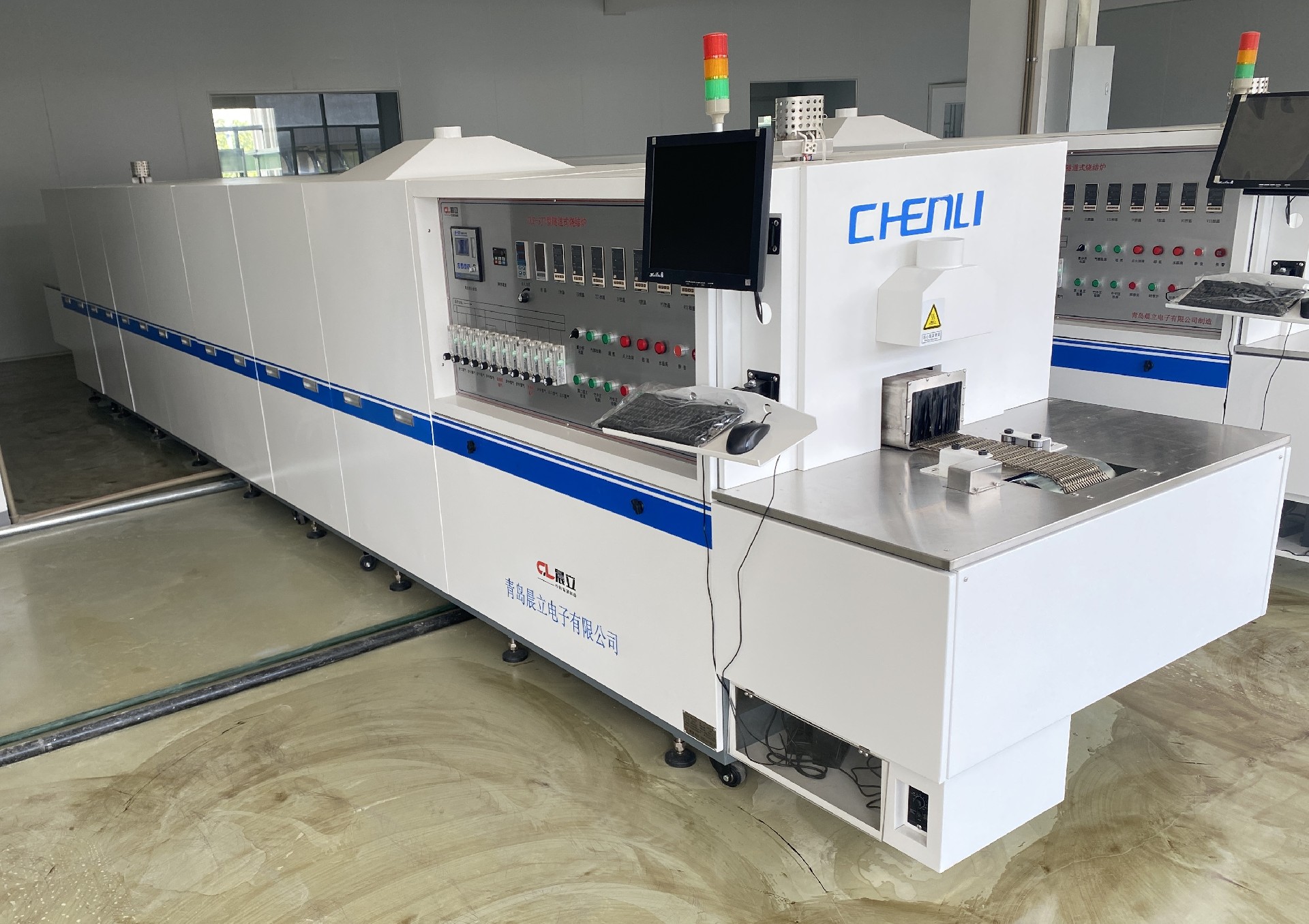

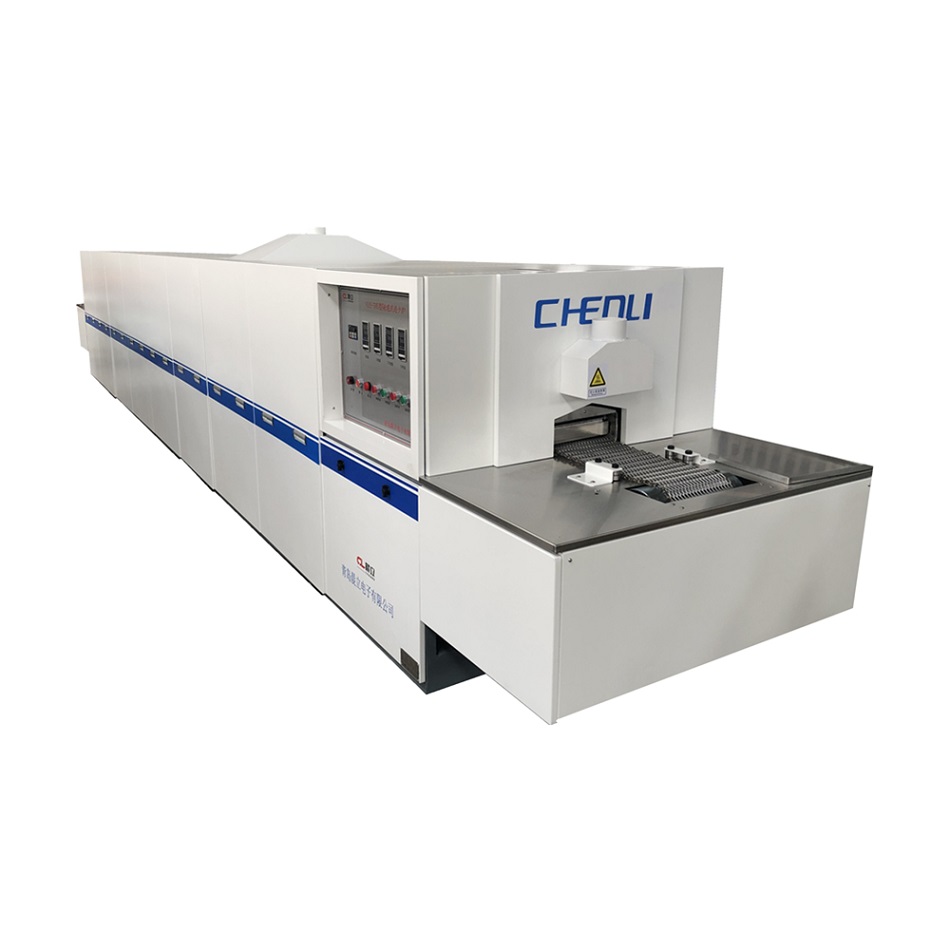

Chain (belt) tunnel furnace series:

Equipment usage: Used for sintering, welding, drying, and airtight packaging of semiconductor devices.

Characteristics of Chain (Belt) Sintering Furnace:

This equipment is an atmosphere protection furnace, with a protective atmosphere of hydrogen, nitrogen, argon, etc.

The equipment has continuous operation to ensure production efficiency.

The unique combination of air curtain and mechanical curtain ensures that the furnace is isolated from the air.

★ Multiple temperature zones control furnace temperature, making it easy to adjust process curves.

★ The chain belt speed is infinitely and continuously adjustable.

Humidifiers can be equipped according to user requirements.

Main technical indicators of chain (belt) sintering furnace:

★ Bandwidth: 90-350 mm

★ Furnace height: 100-200 mm

★ Furnace width: 100-370 mm

★ Cooling section length: 1000-3000mm

★ Temperature range: 300-1050 ℃

★ Isothermal zone length: 600-1500mm

★ Control accuracy: ± 2 ℃

★ Number of control segments: 4-10 segments

★ Belt speed: 20-500 mm/min

★ Heating time: 90-240 minutes
