Product

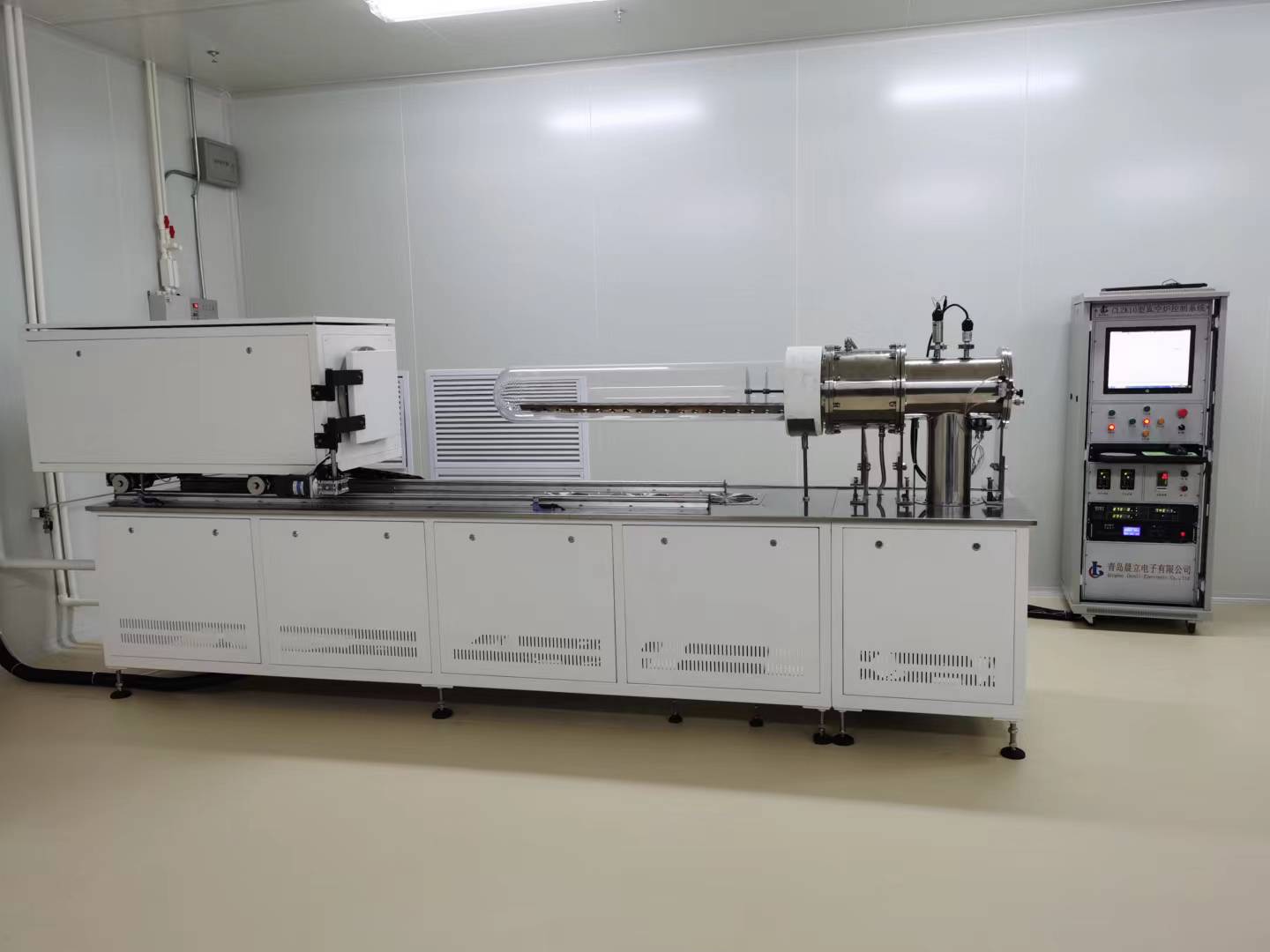

Tube annealing furnaces are used for diffusion, oxidation, annealing, alloying, and sintering processes in industries such as large-scale integrated circuits, discrete devices, power electronics, optoelectronic devices, and optical fibers. All key components are imported, imitating advanced heat treatment manufacturing technology from abroad. They have been selected as long-term suppliers by the Chinese Academy of Sciences, major domestic universities, and many well-known domestic manufacturers. The professional team designs and manufactures them, and can be customized according to different customer needs. The manufacturer directly supplies them with high quality and low price.

Main technical parameters

◆ Quantity of process tubes: 1-4 tubes can be made according to customer needs

Process pipe diameter: Φ 90-360mm (3-12 inches)

◆ Structural type: horizontal hot wall type or vertical type

Working temperature range: 400-1280 ℃

◆ Constant temperature zone length and accuracy ± 0.5 ℃/1080mm

Process uniformity: ≤± 5% (30~60 ohms)

Gas flow rate setting accuracy: ± 1% F S

Air tightness of the pneumatic system: 1 × 10-7pa.m3/s

◆ Ultra clean workbench: Purification level: 100 level (10000 level factory building)

Noise: ≤ 62dB (A)

Vibration: ≤ 3 μ m

Control mode: Industrial microcomputer control

◆ Record the number of process curves and steps without restriction

Our company can customize tube annealing furnaces, tube vacuum annealing furnaces, tube diffusion furnaces, tube sintering furnaces, tube alloy furnaces and other high-temperature electric furnaces according to customer needs. The manufacturer supplies directly, with high quality and low price. We welcome customers to inquire by phone.
